| TECHNICAL SPECIFICATIONS |
MC 1 B |
| Casing | Manually milled and drilled aluminium |
| Cover | 0,3 mm thick, coated with 24 ct. gold foil. |
| Color | Anodized in gold-colored finish (scratch resistant) |
| Terminals | Soft iron, shaped by grinding and milling. |
| Connector pins | 1,3 mm x 20 mm, 14 Kt. solid gold pins. |
| Screw bushes | 2,5 mm brass threaded bushes mounded into casing. |
| Magnet | Rechargeable principle |
| Power: max. BH (Kj/m3°) 41 | |

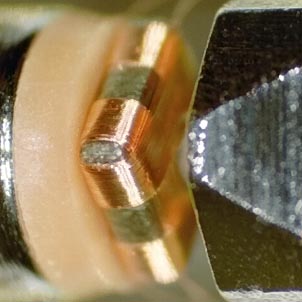

| Coil | 2 mm x 2 mm, soft iron type c 1003 (handwound). |
| Coil windings | 15 micron copper hand-winding wire. |
| Stylus holder | Boron 0,3 mm x 7 mm |
| Angle of stylus in holder | 20° |
| Stylus tip | TIP FGS. High-tech diamond, highly polished finish. |
| Rounded radius 2,5 micron. | |
| Shock absorption | High-tech rubber, 100 SCHOR |
| Tension wire | Steel wire spring, code 1007. |
| TECHNICAL DATA | |
| Coil impedance | 22 Ohm |
| Load impedance | 100 Ohm |
| Load capacity | 150 pF |
| Stylus pressure | 1.8 grams, Max. tolerance 0,1 gram |
| Output voltage | 500 µV |
| Max. tracing capacity | 200 µ mm |
| Channel separation | 60 dB at 100 Hz |
| 50 dB at 1 KHz | |
| 50 dB at 20 KHz | |
| Frequency range | 10 Hz to 50 KHz |
| Total THD % | 0.5 % |
| Total unit weight | 10 grams (incl. socket screws) |
| The
technical data specified above are dependent on the actual arm used in the equipment. |
Test
Equipment : Goldmund Turntable / Air Tangent arm with exterior wiring NEUTRIK AUDIO TEST A 1 and TP 402 |
|
|
|
|
|
